Focal equivalent to stitched image

[mdshaw55]

I'm sure there must be a simple calculator for this- if I use a Schneider 35mm lens, take an image, shift lens 10mm laterally and sandwich 2 images together... what is the equivalent focal length?

And if I did it for 10mm left + 10mm right, what then is the focal equivalent?

Matthew

[torger]

You need to know what your original format size is. Say if your sensor is 44x33mm, diagonal is sqrt (44x44 + 33x33) = 55mm.

If you shift, 10mm left and 10 mm right in portrait mode and stitch you effectively increase your sensor area to (10+33+10)x44mm so you get 53x44 (almost exactly the same as fullframe 645 format) which is 69mm diagonal, so your multiplication factor becomes 69/55 = 1.25.

This means that your Schneider 35mm will give you the same field of view as an 35/1.25 = 28mm lens would have on the original 44x33mm size.

[Doug Peterson]

I developed calculator like that, but have not finalized a public version. If you're a customer of ours please contact me and I'll be glad to provide you a beta version.

The math itself is not rocket science; we developed the calculator because it's much faster and less error prone than doing it by hand, especially when you want to quickly compare several options.

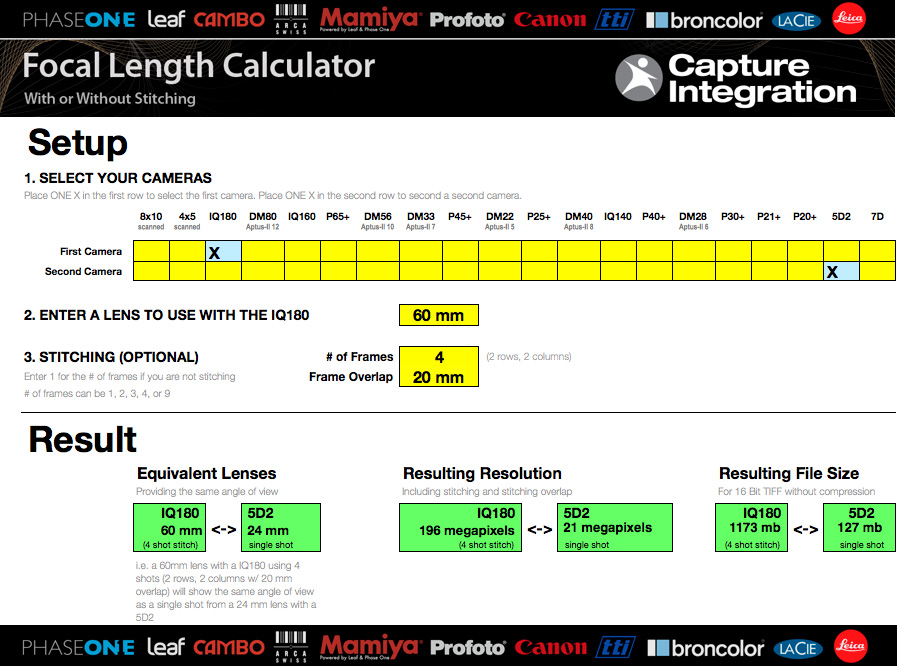

Example (in this case not the 35mm you asked for):


Doug Peterson (e-mail Me)
__________________

Head of Technical Services, Capture Integration
Phase One Partner of the Year
Mamiya Leaf, Leica, Arca Swiss, Cambo, Profoto, LaCie, Canon, TTI, Broncolor & More

National: 877.217.9870  |  Cell: 740.707.2183
Newsletter | RSS Feed
Buy Capture One 6 at 10% off

[mdshaw55]

It's a P45 and in landscape format.

Doug- email sent.

Matthew

[mjon]

Here is another one:

http://www.alpa.ch/en/products/tools/alpa-tools/alpa-comparable-focal-length-calculator.html
